● Room temperature cold stretching, no heating, zero hazards, energy consumption reduced by 70%
● 5-sided full sealing, waterproof, dustproof, anti-theft, stable stacking without collapse
● Fully automatic linkage with palletizer, 24-hour unattended efficient production
● 30%-40% film saving, effectively reduce long-term operating costs

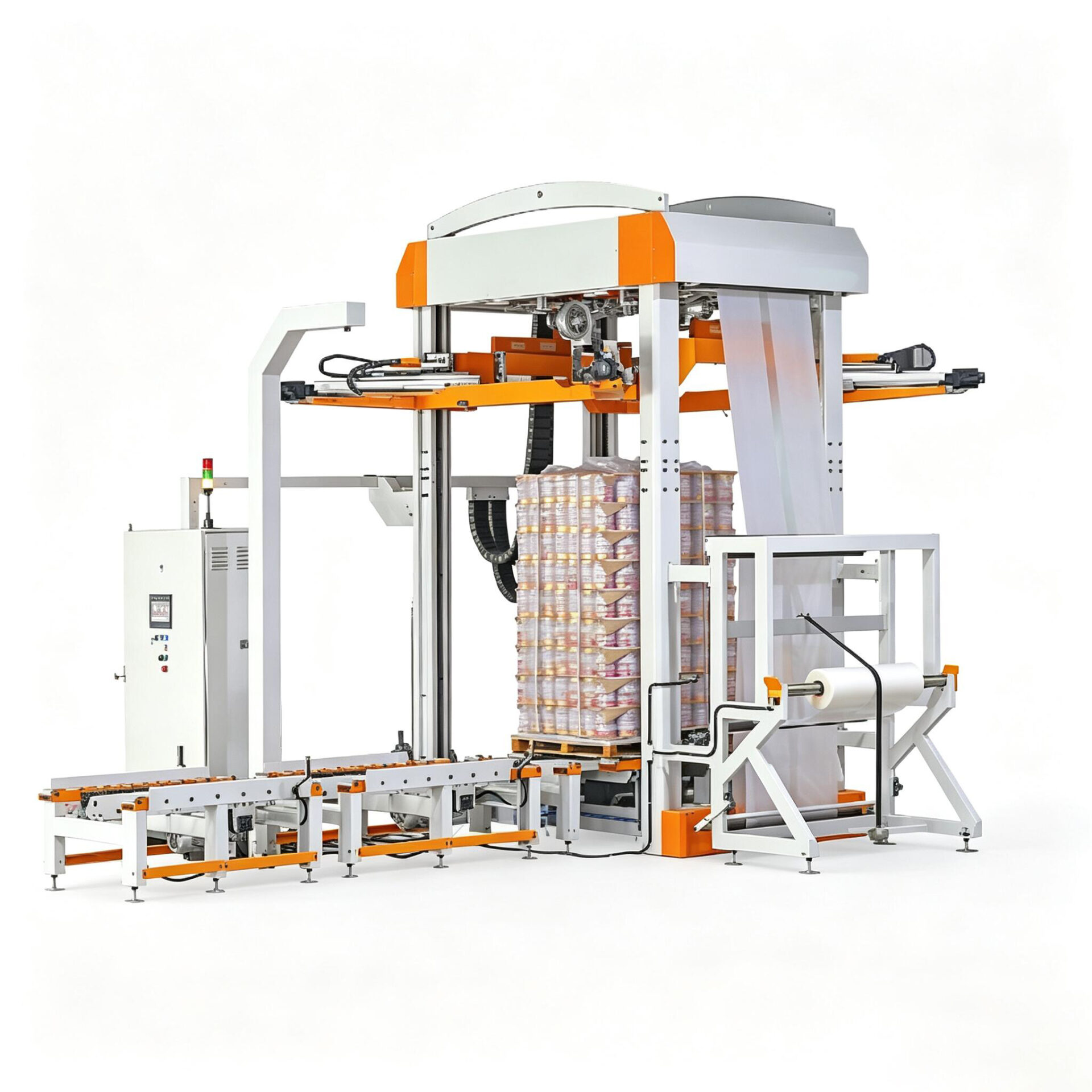

The stretch hood machine is one of the fastest-growing applications in the pallet packaging field, with an annual growth rate of approximately 20% in Europe. This rapid growth is attributed to its extremely high packaging integrity and flexibility in handling various palletized goods. The cold stretch hood is an ideal solution to solve the instability of palletized goods. Through this technology, the most common types of damage to palletized goods can be minimized, such as displacement, tearing or loosening of outer packaging, extrusion, water stains and pest infestation.

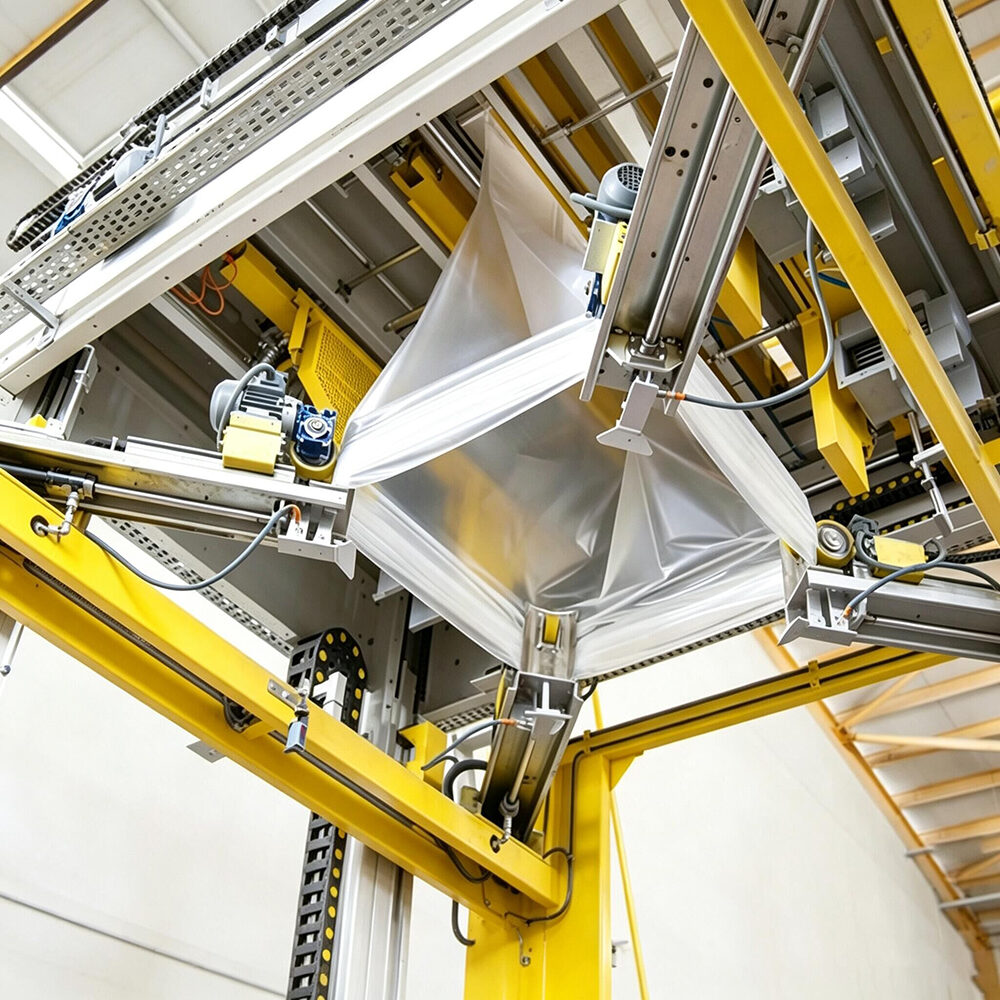

The stretch film is made of a roll of continuous film with M-folds. By stretching and covering it on the palletized goods, the maximum integrity of the goods can be achieved. It adopts a fully automatic operation mode, and the machine will automatically adjust according to the height of the relevant palletized goods without manual intervention.
Working process:
| Model | MSH90 |
| Stack size | L1000~140*00*W1000~140H120-150 mm |
| Stack height | 800~2100mm (with pallet) |
| Film thicknesses | 80~150um |
| Capacity | up to 90 stack/h |
| Air consumption | 20Nm3/h |
| Power consumption | 20KW |

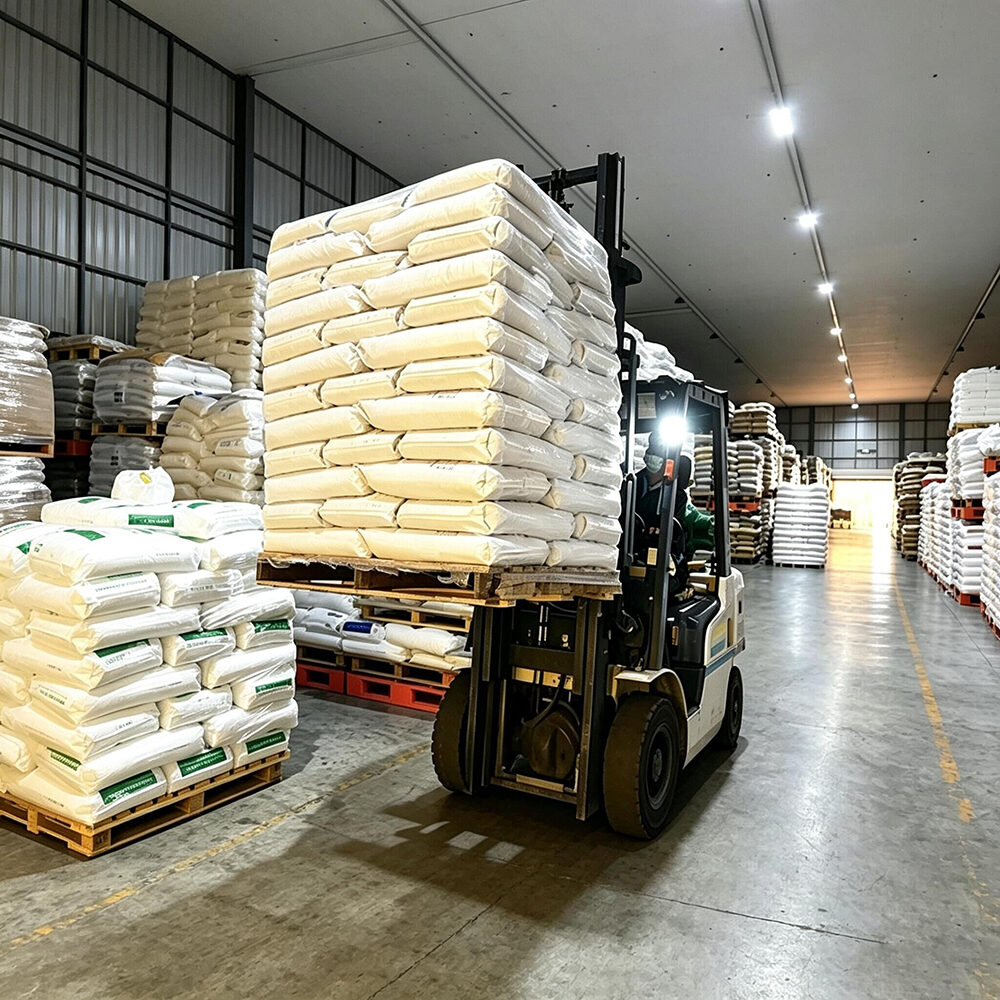

The stretch hood machine is widely used for pallet packaging of 25-50kg bagged materials, and is suitable for multiple industries:
1. Chemical new materials & plastic pellets: Adaptable to dusty workshops, prevents moisture caking and pollution via sealed design, and matches fully automatic palletizing lines perfectly.
2. Chemical fertilizer & organic fertilizer: Waterproof and moisture-proof, eliminates moisture caking and transportation leakage, and avoids dust fire risks with non-heating structure.
3. Grain & feed: Provides insect and moisture protection, suitable for long-term storage and batch transportation, replacing manual winding.
4. Building materials & mineral powder: Suitable for high-dust conditions, safer with non-heat source design, and prevents powder spillage and pallet pollution.
5. Food & pharmaceutical raw materials: Customizable food-grade stainless steel models, isolates dust and mosquitoes with sealed design to meet hygiene requirements.
