● Z-type vertical conveying structure, saving workshop floor space and realizing material lifting between different heights.
● Food-grade stainless steel hopper, smooth surface, easy disassembly and cleaning, no material residue.
● Stepless speed regulation, stable running, adjustable conveying speed to match the multi-head weigher.
● Equipped with overload and anti-reverse protection device, safe and reliable for continuous operation.

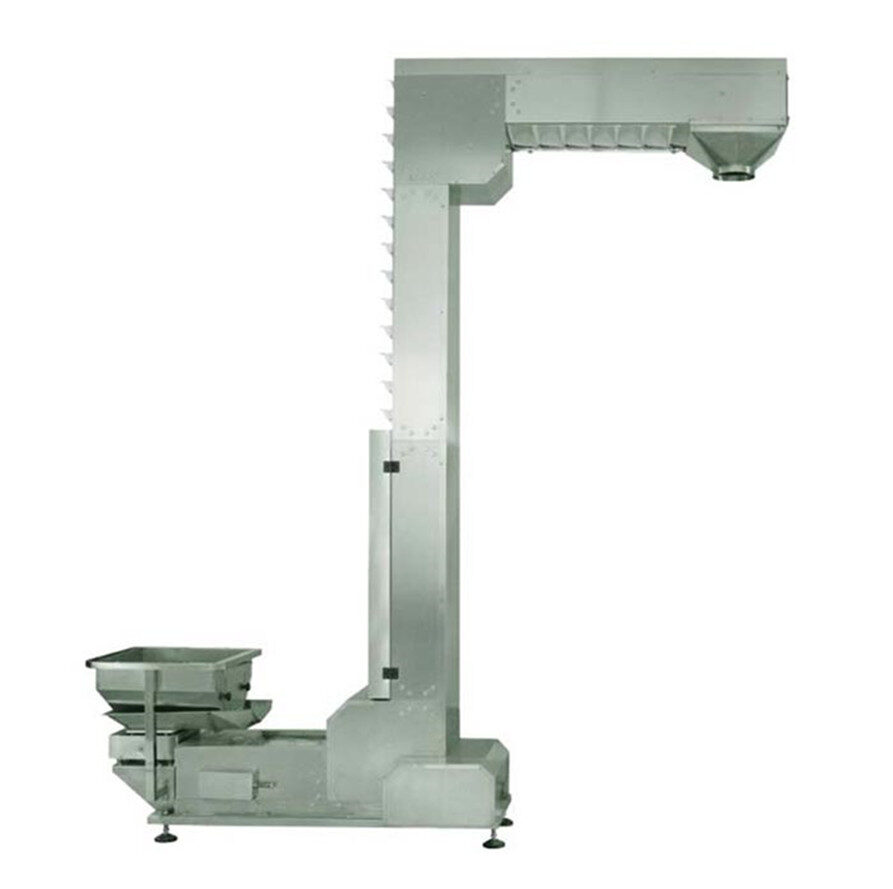

The Z type bucket elevator is a continuous vertical material conveying equipment, commonly matched with multi-head weighers and packaging machines in automatic packaging lines.
It adopts Z-shaped layout to lift materials from low position to high position, which effectively saves workshop floor space. Equipped with food-grade stainless steel hoppers, the machine is easy to disassemble and clean to avoid material residue and cross-contamination. It supports stepless speed adjustment to synchronize feeding speed with the weighing machine. Built-in overload and anti-reverse protection ensure stable and safe long-time operation.
This elevator is ideal for transporting granular, block and flaky materials, widely used in food, snack and related industries.
| Name | Z type bucket elevator | |
| Transporting Height | 3.5m (customizable) | |
| Conveying capacity | 3-8m3/h | |
| Power | 380V/220V, 0.75-1.1KW | |
| Total Weight | 500kgs | |
| Conveyor bucket | 1.6L(420x140x70) | |
| Package dimension | 2300x1100x3550mm (L*W*H) | |
The Z type bucket elevator is widely applied in automatic packaging production lines, normally working together with multi-head weighers and packing machines.
It is suitable for conveying granular, block and flaky materials, such as nuts, puffed snacks, dried fruits, candies, frozen food and other food products. It can also handle small plastic parts and hardware components for non-food industries.
With food-grade structure, it meets strict hygiene requirements for food factories. The machine realizes low-to-high material feeding, perfectly connecting different processing equipment. It is suitable for continuous mass production and frequent product changeovers with easy cleaning.
