● Large conveying angle with cleated belt, effectively prevent material sliding and spilling.
● Food-grade PU belt & stainless steel frame, easy to clean and meet food hygiene standards.
● Stepless speed regulation, running smoothly, speed synchronized with multi-head weigher.
● Compact structure, save workshop space, equipped with anti-deviation safety protection.

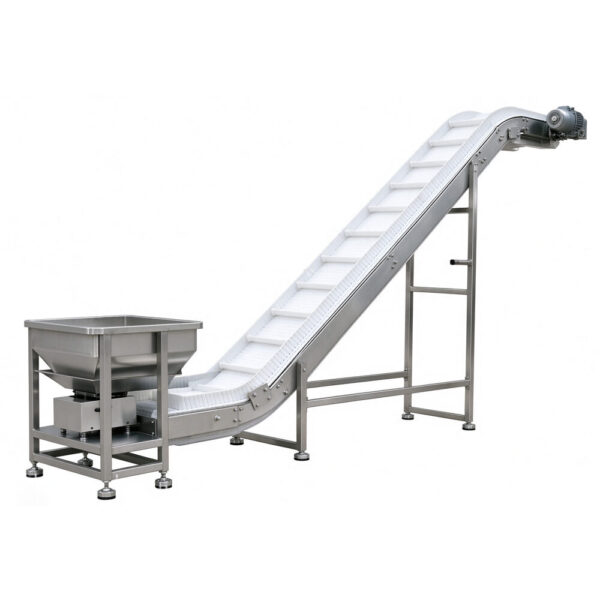

The high angle conveyor is a steep inclined continuous conveying equipment, widely matched with multi-head weighers and packaging machines in automatic packaging lines.
It adopts corrugated sidewall and cleated belt design to realize large-angle lifting without material spillage. The food-grade PU belt and stainless steel frame support easy disassembly and cleaning. With stepless speed control, it can adjust feeding speed to coordinate with the weighing system. Anti-deviation protection ensures stable long-time operation.
This conveyor is suitable for granular, block and flaky materials, offering flexible layout options to save factory floor space.
| Name | High Angle Conveyor | |
| length | 3000-5000mm or Customized | |
| width | 400-650mm or Customized | |
| height | 3000-5000mm or Customized | |
| Voltage power | 1.5kw 380v/50hz | |
| material hopper | 650mmx650mmx825mm or Customized | |
The high angle conveyor is applied in automatic packaging production lines for food, snack, grain and chemical industries.
It is suitable for conveying nuts, puffed food, dried fruits, candies and other granular, block and flaky products. It can also transport small plastic and hardware parts.
Thanks to its large inclination design, it connects low feeding point to high discharging point, ideal for factories with limited workshop area. It supports continuous mass production and quick cleaning during product changeover to avoid cross-contamination.
