● High digital sensitivity, detect ferrous, non-ferrous and stainless steel metal contaminants.
● Automatic alarm & reject function once metal detected, guarantee food safety.
● SUS304 stainless steel frame and food-grade PU belt, easy to clean, meet HACCP standard.
● Touch screen operation with auto-learn function, easily integrated into packaging lines.

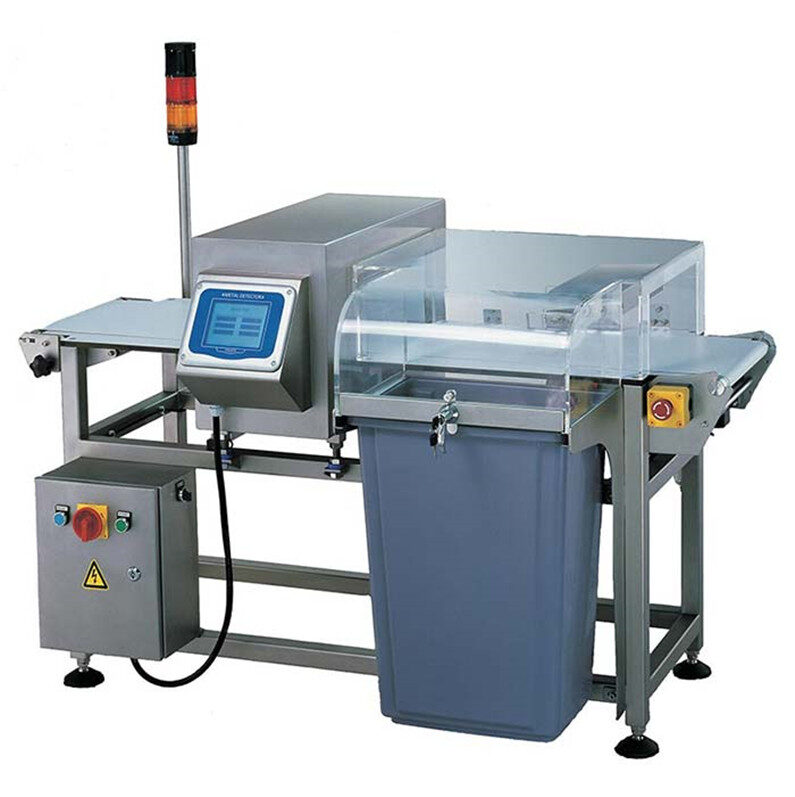

The metal detector is essential safety inspection equipment for automatic packaging lines. It adopts digital electromagnetic detection technology to inspect packed products on the conveyor.
It can identify ferrous, non-ferrous and stainless steel fragments mixed in goods. Once metal impurities are detected, the machine will trigger an alarm and automatically reject defective products. The whole frame is made of SUS304 stainless steel with food-grade PU belt. The auto-learn function reduces product effect interference. It supports recipe storage and multi-language touch screen operation. This machine can be installed before or after the weight checker to achieve full product inspection.
| Name | Metal Detector | |
| Specification | 5012 | 5018 |
| Power Supply | 3P Ac220V 60Hz | |
| Motor | 90W | |
| Main material | SUS（304） | |
| Effective Detection Width | 500mm | |
| Belt Width | 470mm | |
| Effective Detection Height | 120mm | 180mm |
| Detection Sensitivity | Fe=φ0.8mm， | Fe=φ1.2mm， |
| SUS304=φ2.0mm， | SUS304=φ2.5mm， | |
| Cu/Non-Fe=φ1.5mm | Cu/Non-Fe=φ2.0mm | |
| Alarm Method | Alarm by sound & light, and the conveyor belt stops or defective products will be removed automatically | |
| Present Memory | 100 | |
| IP Grade | IP30 | |
| Display and operation method | LCD Screen with soft key button input | |
| The height from the ground to the conveyor belt | 700mm | |
| conveying capacity | 20kgs | |
| Conveying Direction | from left to right | |
| Conveyor belt speed | 26m/min | |
| Conveyor belt material | Food grade PU belt | |
| L×W×H Dimensions | 1500×930×1010 mm | |
| L×W×H Packing Volume | About 1590×1000×1150 mm | |
| N.W/G.W | 200kgs/250kgs | |
The metal detector is widely used in food, snack, pharmaceutical and daily chemical industries.
It inspects sealed pouches, sachets and small packs of nuts, puffed food, frozen food, powder products and medicine.
It is applied to detect metal fragments generated during production. It matches perfectly with multi-head weigher and vertical packing machine lines. It helps factories meet food safety requirements and avoid product recalls. Suitable for continuous mass production.
