● Fully automatic bag loading, weighing and sealing
● Max throughput: 180 bags/h for powdery materials
● Designed for small-scale production & high-precision packaging
● Built-in dust removal system, clean and eco-friendly

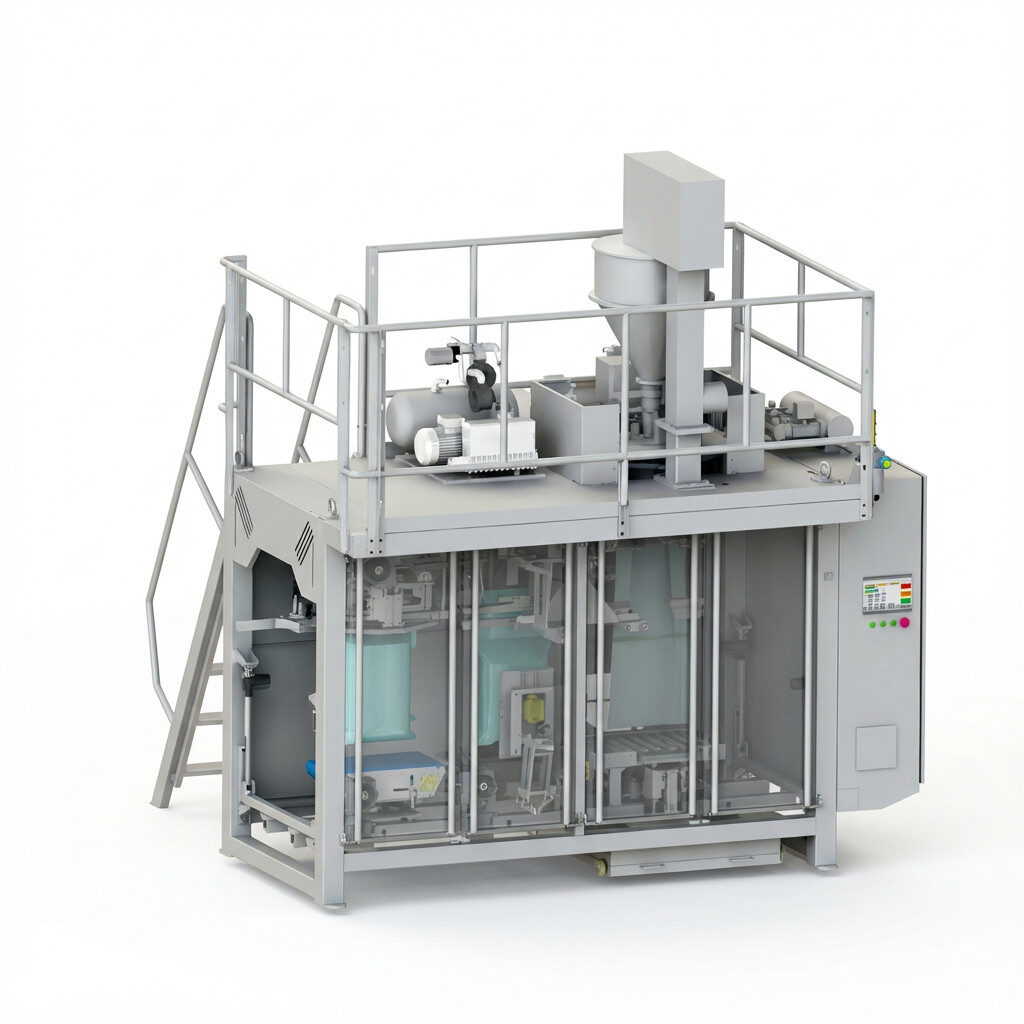

The MAP-180 Low-Speed Open Mouth Bagging Machine is designed for powdery materials requiring high packaging precision, with a throughput of 180 bags per hour. It realizes fully automatic bag loading, weighing and sealing. Equipped with intelligent PLC control, it is easy to operate and delivers high weighing accuracy. Built with a dust removal unit, it keeps the machine and workshop clean and meets environmental protection standards.
| Model | MAP-180 |
| Applicable materials | Powdered material |
| Applicable bag type | Flat open-mouth bag/ M-gusset bag |
| Applicable bag material | Woven bag/kraft paper bag/PP bag/PE bag/aluminum foil bag |
| Sealing Mothed | Heat sealing/Stitching |
| Package weight | 10-50 kg/bag (reference value) |
| Packaging speed | Maximum 180 bags/hour |
| Bag size | Bag width 350-550mm, bag length 600-1000mm (bag width within100mm, bag length within 200mm on the same machine |
| Total machine power | 15KW |
| Air consumption | 400NL/min |
Suitable for high-precision powder packaging or small-scale powder production. Widely used for pharmaceutical intermediates, chemical powders, food additives, fertilizer, flour, mineral powder and food powder materials.
Applicable bag types:
Flat open bags, M-type bags
Bag materials:
Woven bags / Kraft paper bags / PP bags / PE bags / Aluminum foil bags
