● PLC and touch screen control system with one-click recipe storage for simple and efficient product changeover.
● Independent vacuum chamber design ensures stable vacuum level and outstanding fresh-keeping effect. Modular sealing structure realizes tight sealing to effectively prevent air leakage.
● Equipped with pouch and pouch opening detection sensors; no feeding without pouch to reduce material waste and defective packs.
● Compatible with weighing system, feeding elevator, date coder and other equipment for integration into automatic production lines.

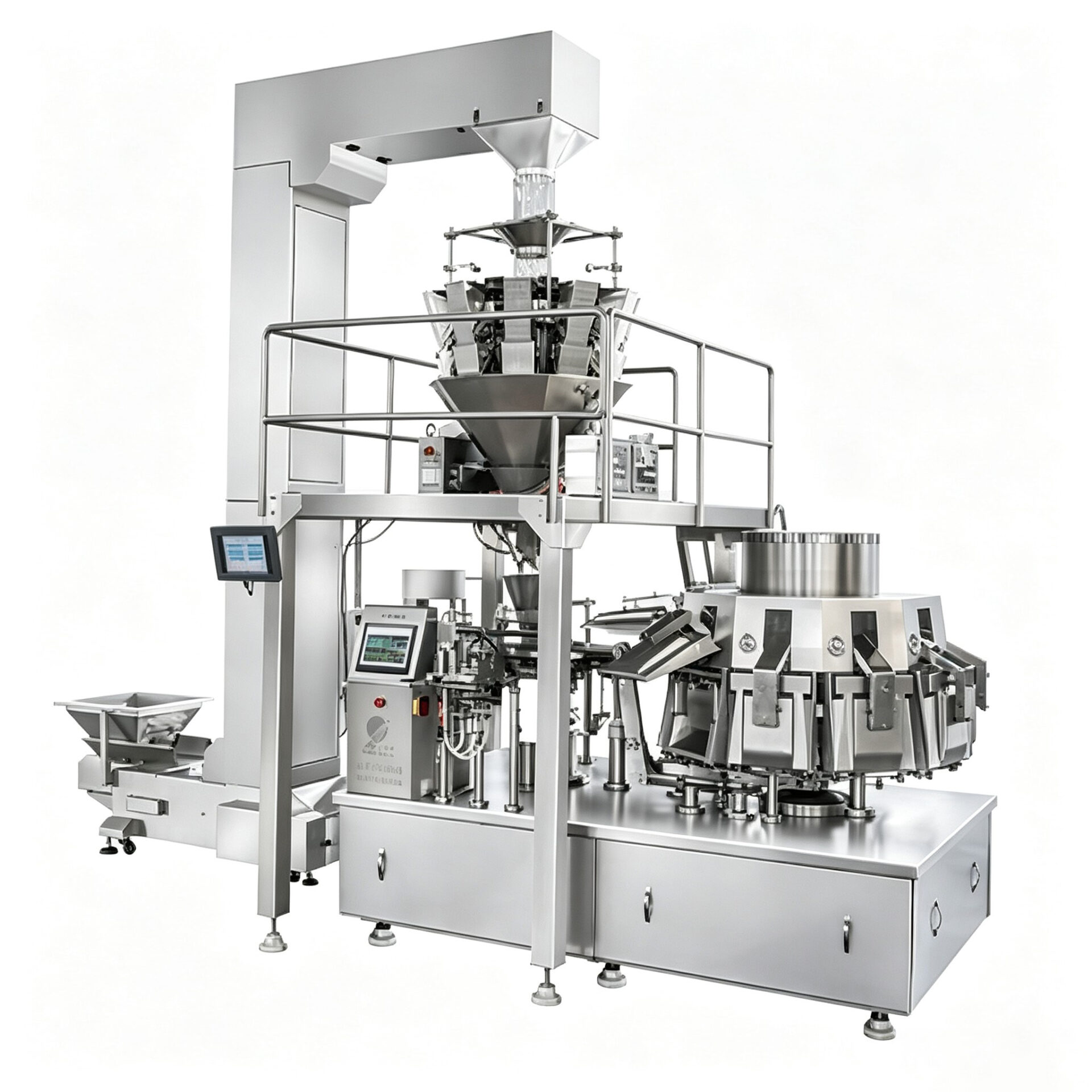

MPV-2000 Automatic Weighing Vacuum Pre-made Pouch Packaging Machine is a fully automatic rotary vacuum packaging equipment for premade pouches. It automatically completes pouch picking, pouch opening, weighing & feeding, vacuum extraction, heat sealing and finished pouch discharging. Product contact parts are made of SUS304 stainless steel. Equipped with PLC and touch screen control system, the machine fits various pre-made pouches. Built-in vacuum chamber removes air inside pouches to extend shelf life of products. It is widely used for solid materials requiring vacuum fresh-keeping. Optional feeding equipment and date coder are available for integration into automatic production lines.
| Model | MPV-2000 (Equipped with Multi-head Weigher & Elevator) |
| Working Stations | 8 stations for bag feeding, 10 vacuum chamber stations |
| Packaging Materials | 4-side seal pouches, stand-up pouches, handle pouches, zipper pouches, paper pouches and other composite pouches |
| Working Process | 1. Bag Feeding 2. Production Date Printing 3. Pouch Opening 4. Discharging 1 (Solid Material) 5. Discharging 2 (Liquid) 6. Waiting Station 7. Transfer 8. Vacuuming 9. Heat Sealing 10. Air Release 11. Lid Opening 12. Pouch Discharge 13. Conveying |
| Weighing Accuracy | ±0.5g ~ ±5g / ≤1% |
| Packing Speed | 25–50 pouches/min (Speed depends on feeding characteristics of products) |
| Filling Range | 50g – 2000g |
| Total Power | 13KW |
| Applicable Products | Dry granular or small block materials such as candies, nuts, raisins, peanuts, melon seeds, nut kernels, potato chips, chocolates, biscuits, grains, jelly, etc. |
| Compressed Air | ≥0.5 MPa |
| Vacuum Degree | ≤500 Pa |
| Machine Weight | 2800 kg |
| Overall Dimensions | 5000X1630X4200mm |
This machine is widely used for vacuum packaging of meat snacks, cooked marinated food, seafood, dried nuts, grains and frozen food. It is compatible with various composite premade pouches such as stand-up pouches, 3-side seal pouches and 4-side seal pouches. Mainly applied in food processing industry to keep products moisture-proof and anti-oxidation and extend shelf life.
