● Color touch screen & PLC control; automatically completes bag forming, metering, filling, sealing, coding and cutting.
● Built-in deviation correction motor for automatic film rectification, stable & efficient running.
● Dual-belt servo film traction, low resistance, well-shaped and aesthetic bags.
● Fully enclosed structure, preventing dust ingress into machine.

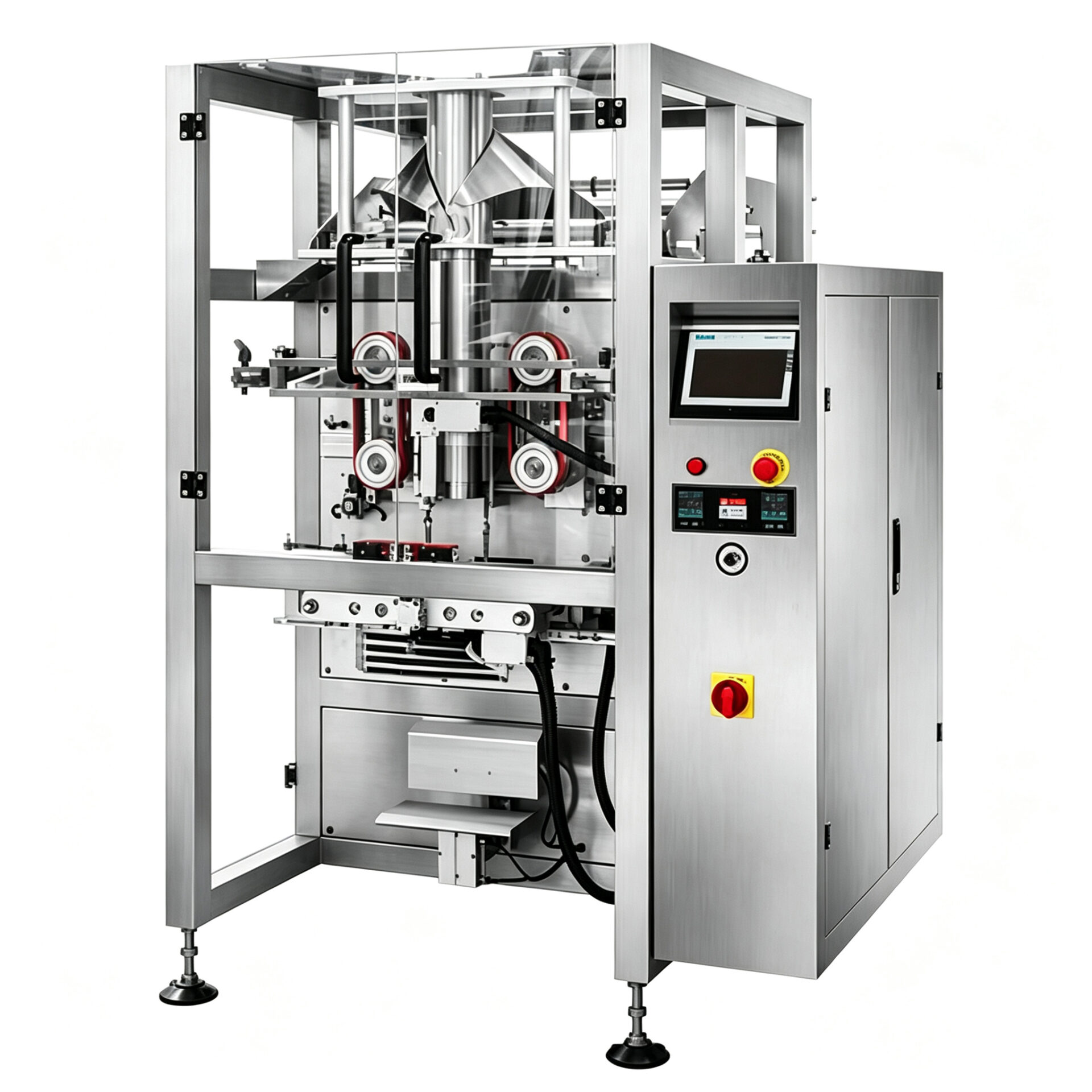

MVF-720 Vertical Packaging Machine is desigend for wide-width bags. With modular structure, it can work with weighers, screw conveyors, hoppers and degassers to achieve automatic bag forming, filling, sealing and cutting for powders and granules. Widely used in medium & big package production lines, it is the key packaging machine for food, chemical and construction raw materials.

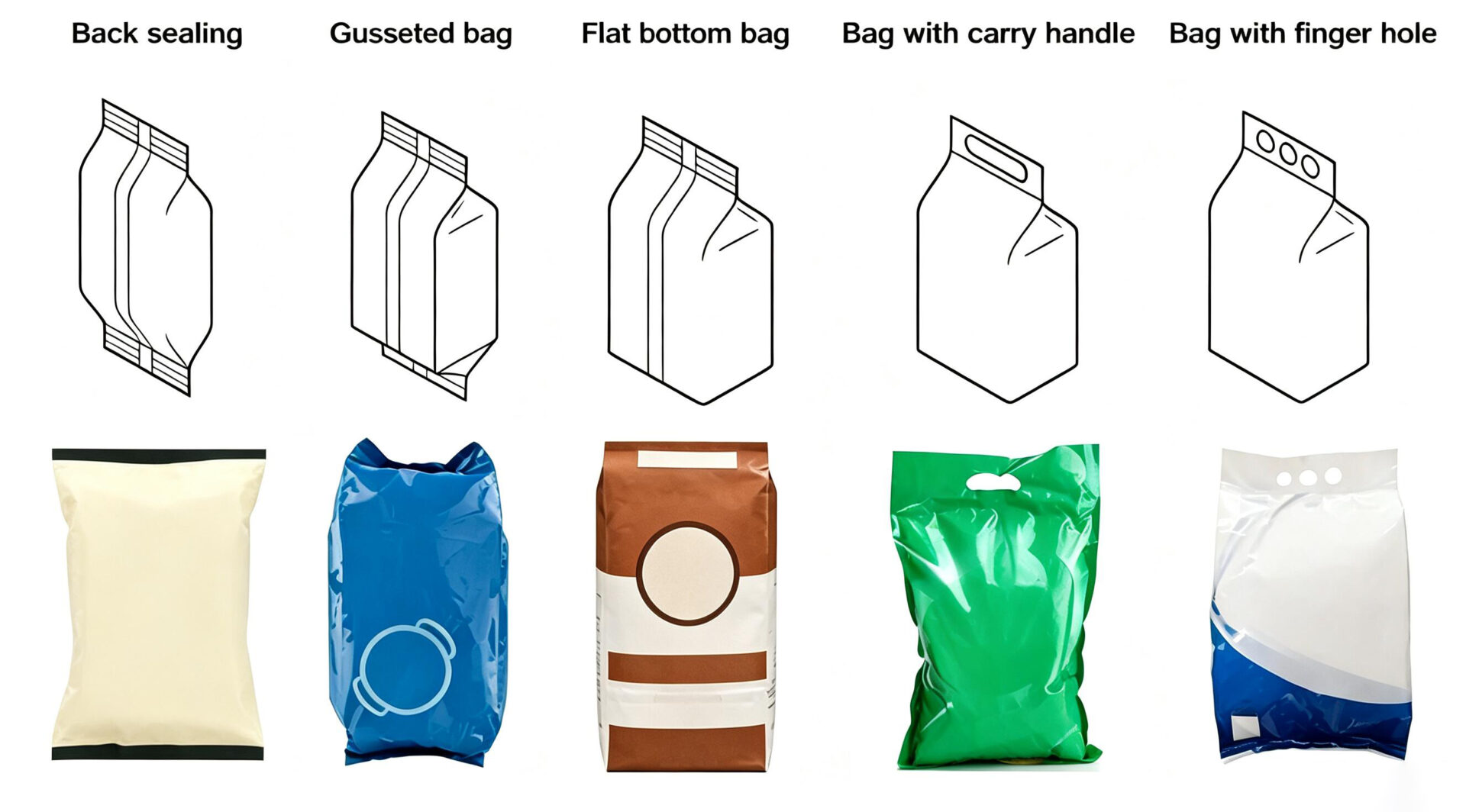

Applicable Bag Types:
Back seal bags, gusseted bags, flat bottom bags, bags with carry handles, bags with finger holes.
| Model | MVF-720 |
| Bag length | 100-420mm(L) |
| Bag width | 180-350mm(W) |
| Max width of roll film | 720mm |
| Packing speed | 10-60bags/min |
| Measuring range | 6000ml(Max) |
| Air consumption | 0.65Mpa |
| Gas consumption | 0.4m³/min |
| Power voltage | 220VAC/50HZ |
| Power | 5KW |
| Dimension | (L)1500mm*(W)1270mm*(H)1700mm |
| Net weight | 900Kg |
It is widely used in the food industry for packaging rice, flour, pasta, grains, milk powder, puffed snacks, nuts and pet food; chemical raw materials such as plastic pellets, laundry detergent, detergent powder, inorganic salts and chemical additives; construction materials and agricultural supplies including fertilizer granules, seeds, bentonite and various powder additives. It can also process various granular and powdery materials such as pharmaceutical intermediates, rubber & plastic raw materials and desiccant pellets.
