● Measuring range: 5kg–20kg, engineered for heavy-load bulk packaging.
● Capable of making multiple bag styles to satisfy varied packaging demands.
● Upgraded film traction and sealing structure prevents leakage for heavy sacks.
● Great expandability to connect front feeding systems and rear palletizing lines.

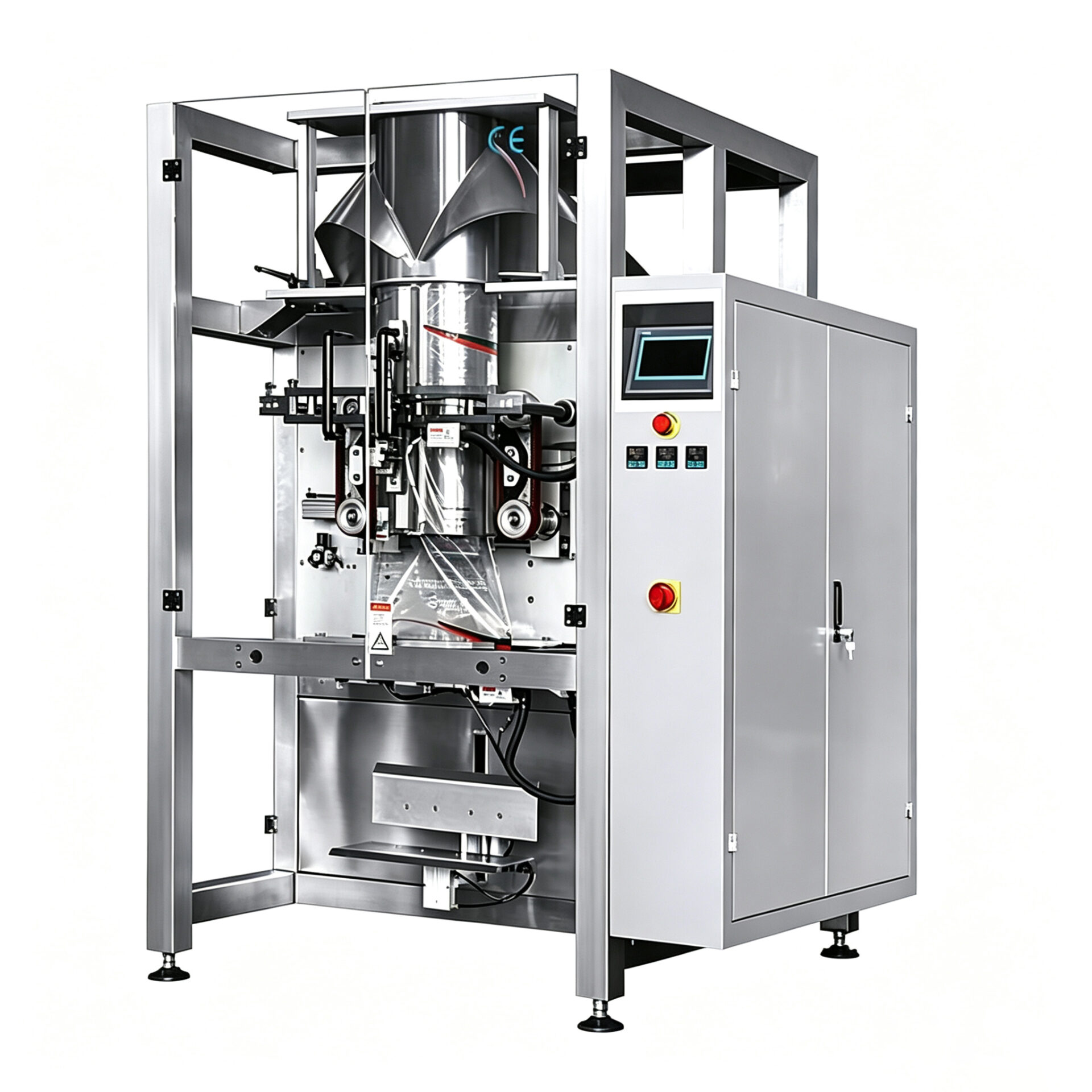

MVF-920 is designed for 5–20kg bulk bags. It automatically completes bag forming, filling, sealing and cutting in one continuous workflow. Compatible with multiple flexible packaging films, it can produce back sealing bags, gusseted bags, flat bottom bags, bags with carry handles and finger-hole bags. It can be matched with weighing, feeding and dust removal systems to realize fully automatic packaging for granular and powdery materials.
Applicable Bag Types:

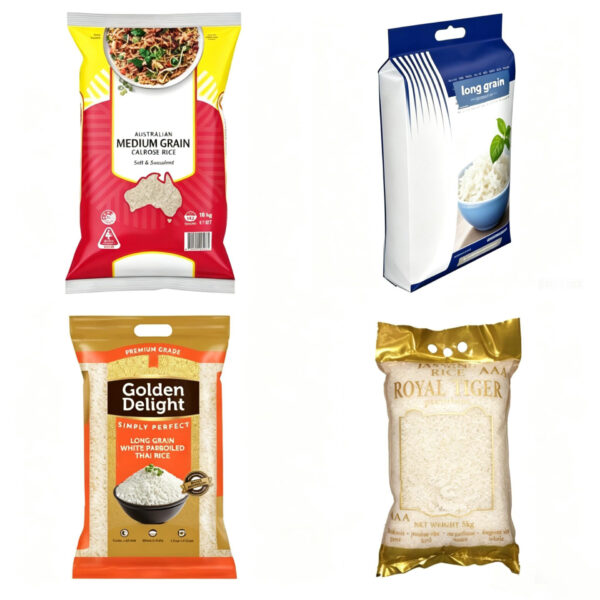

Back sealing bags, gusseted bags, flat bottom bags, bags with carry handles, bags with finger holes
| Model | MVF-920 |
| Bag length | 100-570mm |
| Bag width | 180-450mm |
| Max width of roll film | 920mm |
| Packing speed | 5-40bags/min |
| Air consumption | 0.65Mpa |
| Gas consumption | 0.5m³/min |
| Power voltage | 220V 50/60HZ |
| Power | 6KW |
| Dimension | (L)1750mm*(W)1510mm*(H)2100mm |
| Net weight | 1000KG |
Widely applied in the food industry for packaging rice, flour, pasta, grains, milk powder, puffed snacks, nuts, pet food and frozen food; chemical raw materials including plastic pellets, laundry detergent, detergent powder, inorganic salts and chemical additives; building materials and agricultural supplies such as fertilizer granules, seeds, bentonite and various powder additives. It can also pack granular and powdery materials like pharmaceutical intermediates, rubber & plastic raw materials and desiccant pellets.
