● Adopts touch screen and PLC control system, delivering convenient HMI operation and stable & reliable control performance.
● The exclusive film roll brake mechanism ensures steady film feeding and offsets disturbances from varying film roll outer diameters.
● Eight film guide rollers guarantee smooth film travel; the cantilever roller design facilitates quick film changeover.
● A cone pulley speed adjustment mechanism mounted on film pulling rollers achieves perfectly synchronized front and rear film speed.

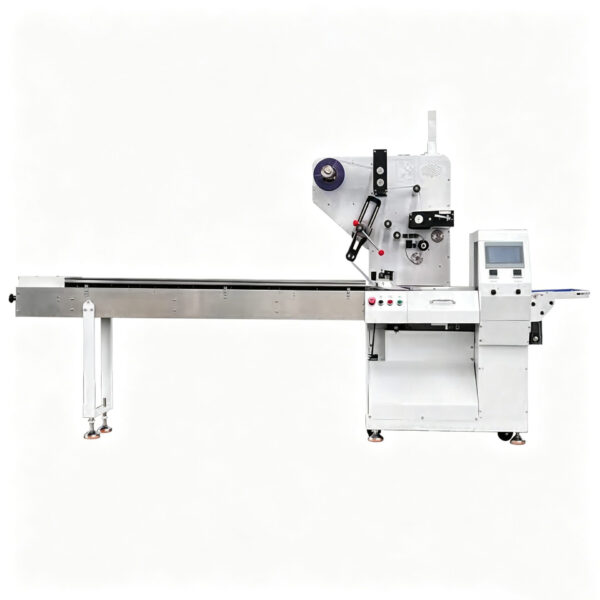

MHU-250 Top Film Feeding Horizontal Flow Wrapper adopts a top film feeding structure. The film roll is installed on the upper part of the machine. Packaging film descends to wrap products on the conveyor belt, and the longitudinal center back seal of finished pouches is located at the bottom of the bag.
The machine continuously completes product feeding, film forming, longitudinal sealing, cross sealing and cutting to produce pillow-shaped packages. It delivers neat and attractive finished packs, making it ideal for products with high requirements on packaging display effect.
| Model | MHU-250 |
| Film width | Max.250mm |
| Packaging rate | 30-200bags/min |
| Bag length | 65mm- longer |
| Bag width | 25-110mm |
| Product height | Max.50mm |
| Power | 220V 50/60HZ 3.75KW |
| Machine weight | 400 kg |
| Machine size | (L)3400x(W)840x(H)1520mm |
This MHU-250 top film feeding horizontal flow wrapper has extensive industry applications, covering the food, daily chemical, pharmaceutical and hardware sectors. For the food industry, it is suitable for bread, mooncakes, pastries, biscuits, chocolates, tray-packed frozen food and boxed ready-to-eat food. In the daily chemical and cosmetic industry, it fits soap, facial masks and disposable hotel amenities. Within the pharmaceutical industry, it applies to medicine blister packs and disposable medical supplies. It can also pack regular plastic components, hardware fittings and other hardware products. This machine is not suitable for tray-free bulk products that are greasy and prone to generating crumbs.
